SolarLand 20A Charge Controller
Price
Rs. 4,500
Rs. 3,600
In stock
Ready to ship from Kathmandu
Free delivery
And professional install
Genuine warranty
Backed by manufacturer
30-day returns
Money-back guarantee
At a glance
12 V / 24 V (Auto Detection)
System Voltage
GEL, AGM, Lead-Acid
Battery Types Supported
SolarLand
Brand
About —
Built for daily use,
designed to last.

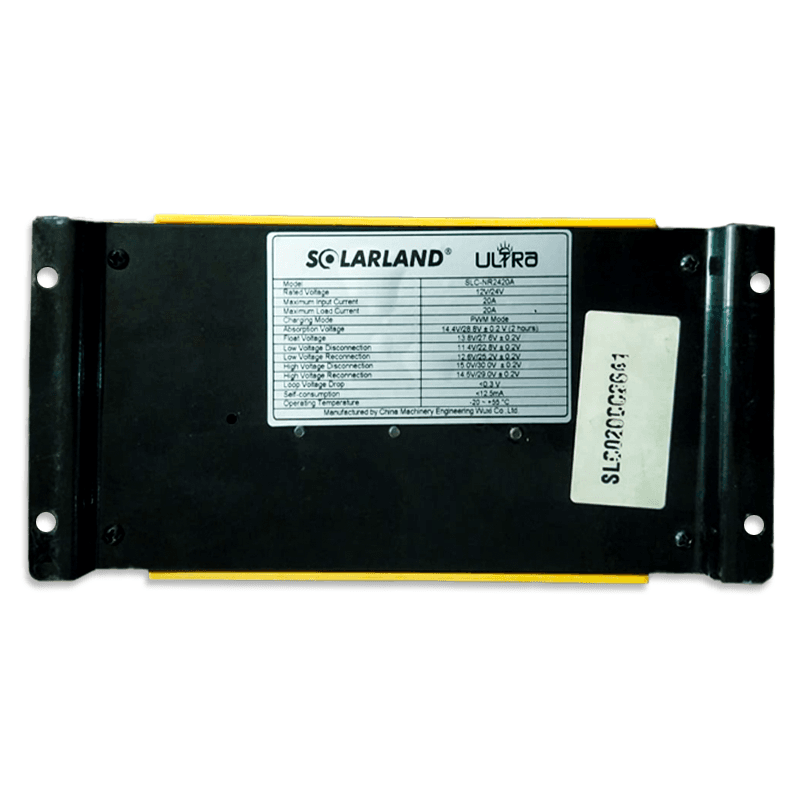

The SolarLand 20A Charge Controller is a PWM solar charge controller that regulates voltage and current between solar panels and batteries to prevent overcharging. It supports 12V/24V systems with auto detection, a 20A rated charging and discharge current, and a maximum PV input of 50V, working with GEL, AGM, and lead-acid batteries. An LED display and front-panel ON/OFF load switch handle monitoring and control in a 168 × 88 × 34 mm, 275g housing.
Datasheet —
Full
specifications.
Every spec we publish is sourced from the manufacturer and verified by our engineering team.
16 entries
- Brand
- SolarLand
- Product Type
- Solar Charge Controller
- Charging Technology
- PWM
- Rated Charging Current
- 20 A
- Rated Discharge Current
- 20 A
- System Voltage
- 12 V / 24 V (Auto Detection)
- Maximum PV Input Voltage
- ≤ 50 V
- Battery Types Supported
- GEL, AGM, Lead-Acid
- Absorption Voltage
- 28.8 V
- Float Voltage
- 27.6 V
- Low Voltage Disconnect
- 22.8 V
- Low Voltage Reconnect
- 25.2 V
- Over-Voltage Disconnect
- 31 V
- Dimensions
- 168 × 88 × 34 mm
- Weight
- 275 g
- Display
- LED display
Fine print —
Terms &
additional info.
Terms & conditions
- 01PWM charging technology increases charging efficiency and reduces energy loss
- 02Prevents overcharging and improves battery life
- 03Reverse polarity protection
- 04High and low voltage battery protection with automatic reconnection
- 05Output current and short circuit protection
- 06Low self-consumption
- 07LED display showing charging status and system conditions
- 08Front-panel ON/OFF load switch
- 09Compact body saves installation space
